Vertical & space-saving
Spiral conveyors
A compact vertical solution for maximizing space. Some of our models require less than three feet of manufacturing floor space.
Specification
The numbers you need before you draw the layout.
Load capacity
50 lb/ft
Up to 50 lbs per linear foot
Speed range
1–165 FPM
Continuous flow operation
Chain widths
83 · 140 · 220
Millimetres, with special chain design
Footprint
< 3 ft
On some models
How it works
The CarryLine spiral conveyor is flexible, built using standard components with a special chain design. We customize the infeed and discharge heights and lengths for your unique material handling solution.
Now you can have an efficient conveyor for your operation while creating more real estate for other needs. Friction chain is often used for these non-accumulating spirals to minimize the tiers required, and the cost.
Our spirals can handle loads up to 50 lbs per linear foot, in aluminum or stainless steel construction, single or multi-lane.
Added benefits

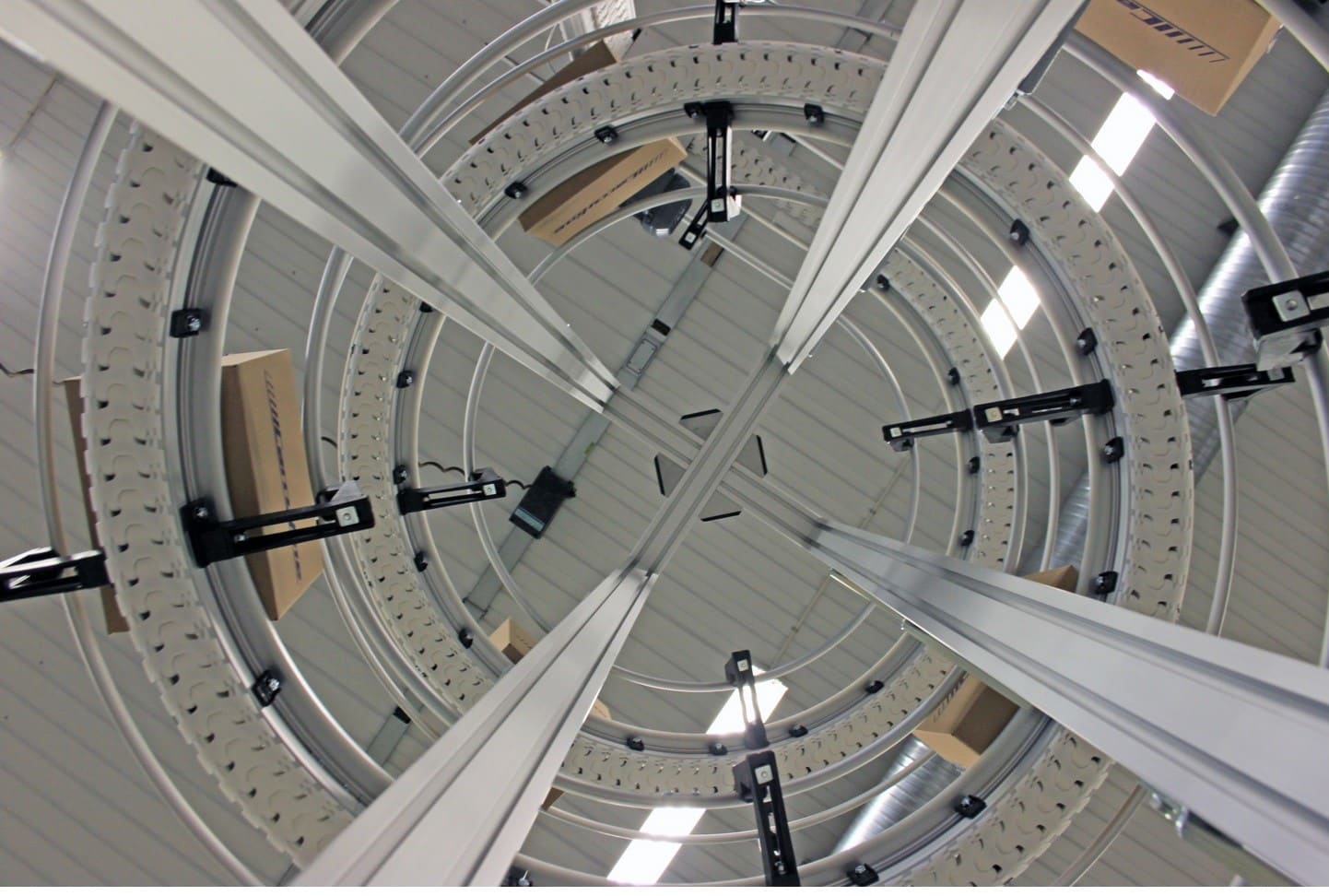

Lightweight, flexible, and endlessly configurable.
- Lightweight and flexible designs
- 1–165 FPM speed ranges
- Aluminum or stainless steel designs
- Continuous flow operation
- Minimal maintenance required
- Endless configuration options
So how does it work?
From first conversation to life-cycle support.
We are with you from the beginning and through the life cycle of your equipment.
- Collaboration and evaluation of your needs, goals and business
- We custom design your conveyor
- In-house testing
- Coordination of delivery at your facility
- Installation and startup support
- Training your staff
- Service after installation available
Happy to report the dual spiral conveyors are performing flawlessly during acceptance testing, and at the customer site. Your team delivered the equipment as promised, and exceeded our expectations on delivery. We sourced multiple other spiral conveyor manufacturers and they all declined to accept the project due to the complexity and level of difficulty. This project would not have been possible without the creativity and unique design solutions by CarryLine USA.
CarryLine USA designed a top of the line, first of its kind double helix spiral conveyor. CarryLine USA allowed me to collaborate with the design closely and was responsive to my feedback, unlike other companies I've worked with in the past. The spiral conveyor has been in continuous operation for over 2 years now and we still haven't had an issue, which I think speaks for itself.
Your imagination is the limit.
Call us and take your business to the next level in conveyors. We strive to foster a relationship with our customers and create an excellent experience for you and your staff. We look forward to working for you — please, call us and be a part of the CarryLine USA family.
Let's design the line around your product.
Send us your product size, throughput target and floor plan. Our engineers will come back with a layout, a footprint and a number.
